Heat Shrink Wrap Machine

Heat Shrink Wrap Machine

Heat shrink wrap machine--Automatic L-type vertical sealing and cutting packaging machine is a new type of automatic L-type sealing and cutting machine, high degree of automation, high efficiency. Widely used in printing, color boxes, greeting cards, photo albums, photo frames, medicine, electronics, daily chemical, cosmetics and other mass production industries.
Send Inquiry

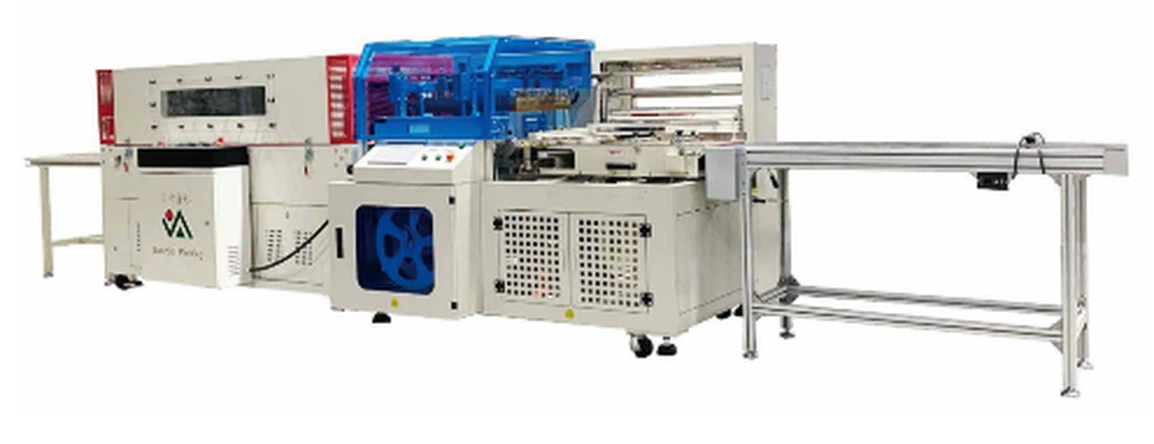

LS-5545D+LS5030T heat shrink wrap machine
Automatic L-type vertical sealing and cutting shrink packaging machine







1 -



Equipment Description



Heat shrink wrap machine--Automatic L-type vertical sealing and cutting packaging machine is a new type of automatic L-type sealing and cutting machine, high degree of automation, high efficiency. Widely used in printing, color boxes, greeting cards, photo albums, photo frames, medicine, electronics, daily chemical, cosmetics and other mass production industries.


product feature



The sealing&cutting slide rail is driven by a four-column vertical system, It can overcome the problem that the folding and sealing line of the traditional L-type sealing machine are not in the middle of the product


The sealing height can be adjusted, can ensure the sealing line is in the middle position; Select the suitable packing height, can reduce the sealing knife working interval time, thus increase the production speed and reduce the production cost


Taking horizontal and vertical two sets of photoelectric, easy to switch, thin or small products can easily complete the packaging
Automatic program control, easy to operate, with safety protection and alarm function


Especially suitable for boxed products.



LS-5545D

Power : 1Φ220V 50/60HZ 5.5 KW​​​​​​
Packing size : L no limited*W+H≤450mm(H≤150)
Packing Speed : W+H≤430mm L+H≤550mm (H≤220)
Atmospheric Pressure: 0-40 pcs/minute
Maximum Current : 10A
N.W. : 700KG
Size :

L1850*W1450*H1410 mm



LS-5030T



 Power : 380V 50/60HZ 13KW
Packing Size  : L1000*W450*H250 mm
Packing Speed :   0-60 pcs/minute
Maximum Current : 30A
N.W. : 350KG
Size :

L1770*W1000*H1240 mm

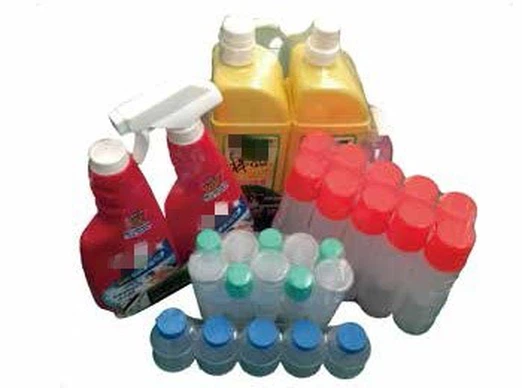

Heat shrink wrap machine packing products show:
